Customized Horizontal wrapping orbital stretch film profile wrap machine

    Buy cheap Customized Horizontal wrapping orbital stretch film profile wrap machine from wholesalers

    Buy cheap Customized Horizontal wrapping orbital stretch film profile wrap machine from wholesalers
    • Buy cheap Customized Horizontal wrapping orbital stretch film profile wrap machine from wholesalers

    Customized Horizontal wrapping orbital stretch film profile wrap machine

    Ask Lasest Price
    Brand Name : TOBO
    Model Number : TBGW-600
    Certification : CE
    Price : 3000USD
    Payment Terms : L/C, , T/T, Western Union
    Supply Ability : 20 Sets/month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Customized Horizontal wrapping orbital stretch film profile wrap machine

    Company Introduction


    TOBO PACKING MACHINERY CO., LTD is one of the fastest growing packing machinery manufacturers in Shanghai, China.attach to TOBO Group CO.,LTD


    TOBO is specialized in researching, designing, manufacturing and marketing packaging machines which are widely used in different fields such as foods, chemicals, pharmacies, beverage, light industry,metal industry and etc.


    TOBO has a modern workshop, a professional R&D team and advanced manufacturing equipment to make your needs meet in the shortest time.


    TOBO series of Horizontal/Orbital stretch wrap machines are sold to more than 120 different countries and regions in Europe, South&North America, Asia,Africa and etc. With high quality machines and timely professional service, TOBO win a consistently high reputation. for automatic packing machine


    For expanding sales channel and enlarge our business, we are sincerely looking for exclusive agents in different countries. You are warmly welcomed to contact us.

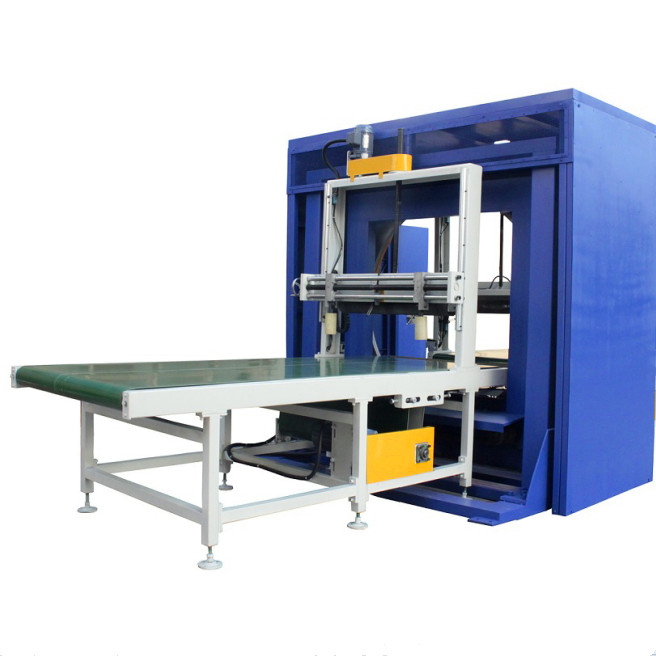

    Preview The packing machine

    Application

    Suitable for all kinds of profiled product,tubular product,linear materials

    profiled product: such as:door,panel,rolling shutter,profile

    tubular product: such as: copper tube,steel tube,plastic tube

    linear materials: such as: coils, steel cable and etc. etc.


    Feature


    Why choose ?

    How do orbital machines function? They wrap the film around the pallet or any other item by rotating the film instead of rotating the object. This allows orbital wrappers achieve bigger working capacity compared with standard stretch wrappers. But that is not the only advantage of this type of equipment: Increased productivity Automatic orbital stretch wrappers can get the job done in just 3 minutes which can significantly boost your packing performance. It can also cut the labor costs since there is no need for an operator standing beside the machine, manually attaching the film or cutting it at the end of each cycle. Unlike a manual worker, an orbital stretch wrapper can work long hours without losing efficiency. Also, a machine pre-stretches the film at least 200% which ensures a much tighter wrap and saves up a lot of film. Safety Manual wrapping may lead to back injuries. Using automatic or semi-auto orbital stretch wrappers may eliminate any potential health risks. No need to stretch, bend, twist, and lift – the machine does everything for you. If you have any questions regarding our products or want to place an order, please contact us at any time.


    Technical Parameters



    TBGW-600TBGW-1200TBGW-1800

    Object size:

    Length:>1500mm

    Package OD: 300-600mm

    Weight:10-100kg

    Length:>1500mm

    Package OD: 500-1200mm

    Weight:10-800kg

    Length:>1500mm

    Package OD: 600-1800mm

    Weight:10-1000kg

    Air Supply:5~8kgf/cm25~8kgf/cm25~8kgf/cm2
    Wrapping Speed:5~18m/min5~15m/min5~15m/min
    Packaging machi

    LLDPE stretch film

    Width: 150-300mm

    OD: 100-250mm

    ID: 50mm

    (Let me know, if you need another material)

    LLDPE stretch film

    Width: 150-500mm

    OD: 100-250mm

    ID: 50mm

    (Let me know, if you need another material)

    LLDPE stretch film

    Width: 200-500mm

    OD: 100-250mm

    ID: 50mm

    (Let me know, if you need another material)

    Air supply5~8kgf/cm25~8kgf/cm25~8kgf/cm2
    Ring speedApp.10-80r/minApp.10-60r/minApp.10-60r/min
    In feeding conveyor2000mm L×800mmW2000mm L×1400mmW2000mm L×1800mmW
    Out feeding conveyor2000mm L×800mmW2000mm L×1400mmW2000mm L×1800mmW
    ApplicationPanel, wooden, door, aluminum, profile, board,tube, pipe, tunnelPanel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,palletPanel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,pallet


    Packing and Shipping



    FAQ


    Q1: How do I find a Packing machine model suitable for my product?


    A: PLS Tell me about your details information and requirement.

    1. What is your packing object details(size).

    2. What process you want our packing machine be in charge of?

    3. What is the situation of your working environment and former working process.

    4. Your requirement for the machines working capacity


    Q2:Are you factory or trading company?

    A:We are manufacturing&trading company with Shanghai Sales Office and Jiangxing production base.Welcome to visit us


    Q3:What about the production lead time?

    Regarding Production Time;usually we need 3 working days after technical details and order confirmation for individual machine.

    A:But for the whole packing line,we need 20-30 working days


    Q4:What about payment terms?

    A:We accept TT/Western Union/Cash/LC/Trade assurance order,With 30% deposit as advance payment and 70% as balance payment

    before machine leaving the factory


    Q5:what is your warranty and after-sale service?

    A:One year warranty and lifelong after-sale service via skype/Email/mobile/Whatsapp/Wechat/etc.

    also technical service overseas is available.


    Q6:Why choose our machine?

    A:1-Competitive Price with great performance

    2-Excellent technical support and Professional Service

    3-Own design department meets your various OEM/ODM need

    4-Over 15 years experience in packing machine field
